Drones
11L Quad and 11L Hexa
Both carry an 11-litre tank and are assembled here. Purchase includes one battery set (2 batteries), basic flying training, and service and repairs from our store.

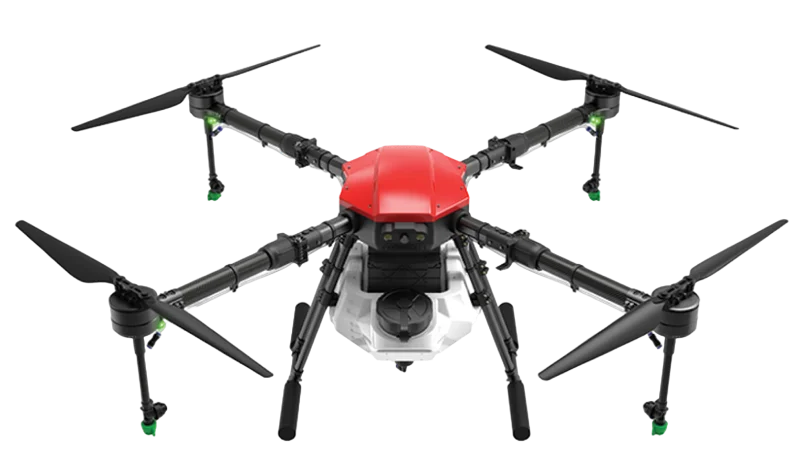

11L Quad
Four rotors. Folds down for transport.
Photo pending
11L Hexa
Six rotors.
Hardware
Model by model
| Hardware | 11L Quad | 11L Hexa |
|---|---|---|
| Rotors | 4 | 6 |
| Tank | 11 L | 11 L |
| Extended size | 1992 × 1802 × 562 mm | TBC · pending owner |
| Folded size | 945 × 848 × 500 mm | TBC · pending owner |
| Motors | Hobbywing X6 / 6215 | TBC · pending owner |
Both models
Battery, controller and field planning
Set the field on the controller and the drone flies the job on its own, then returns to where it started.
| Battery | Tattu 16000 mAh, 22.2 V, 6S1P LiPo, 15/30C |
|---|---|
| Battery weight and size | 1990 g, 193 × 77 × 66 mm |

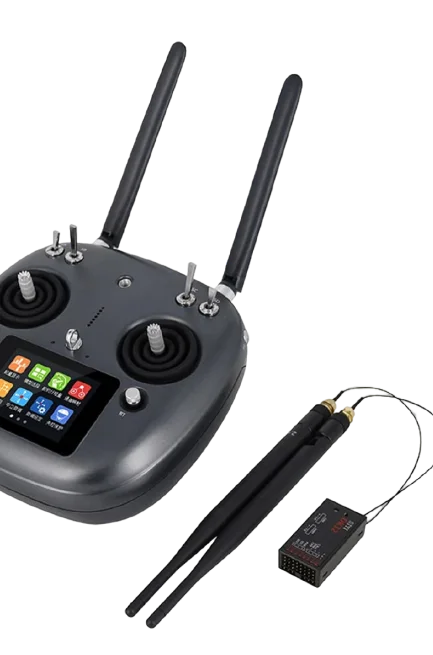

| Controller | H12 series, Android-based, Snapdragon 625 |
| Field planning | Mark points on the field on the controller; the drone takes off, sprays and returns to its start point |
Both models
Operating specs
| Tank capacity | 11 L (8 L fill recommended) |
|---|---|
| Spray rate | About 3 minutes per acre |
| Acres per day | 20–30, depending on spare batteries |
| Acres per battery set (paddy) | Beginner 1–2 · Intermediate 2–3 · Expert 3–4 |
| Flight time per battery set | 10–15 min with load |
| Charging time | 25 min |
| Battery lifespan | 200–300 cycles; 300–400 well maintained |
| Flight height | Locked to 20 m |
| Range | Up to 4 km |
| Water resistant | No |
| Crew | Pilot, co-pilot, helper (helper arranged by farmer) |
| Transport | 4-wheeler ideal; a 2-wheeler can be modified |
